Well, this is the second article in this series. Do you think I will write the first article on how to install 303? You are still too young
There are many things to write about that thing. The key is that my thinking has undergone certain changes and wiped out a different kind of spark, so it has returned (but the key is that the buddy is anxious, and the buddy of 303 is not anxious). So first brewing this small steel cannon when brewing inspiration.
In this article, you will see a broken chassis that cannot go back, plus a non-module power supply, how to figure out a good line.
Let's take a look at how a damned obsessive-compulsive disorder is driving itself.
Incidentally, show how to install the PE loading system. All the processes before and after the DIY installation are answered in this article. In the future this will be the standard strategy for the system installation part of my series.
Please visit the web page to find a personal profile with durian.
First, the out of the box is still coming.It's a good habit to show family photos and configure orders first
To force it up, it means that the installation machine is just for the sake of a better poetry and painting, and it is an artwork.
The recent family portrait, you can see Dog East heard my call, and finally put a dog bag to the power supply, but the chassis is still naked. Take a look at Taobao's purchase of two silkworms and solar eclipses.
Configuration list: CPU: I5-6500
Mainboard: MSI B150M Mortar (B150M MORTAR)
Memory: Zhiqi DDR4 2400 8GX2 Bentley Black (the motherboard sent one, bought one)
Solid State: OCZ TRION 150 240G
HDD Hard Drive: Western Digital 1T, 2.5 inch, 5400 revolutions
Heat dissipation: Ma Qing Tianzhu (also an East China Sea X4)
Power Supply: First Horse Gold 500W
Chassis: Qiao Sibo C3
Chassis Fans: Everything
Graphics card: RX480 (such as listing it) Temporary R7 250 make do with
Demolition splitting
Just put a pendulum, this is the case, Kyushu Fengshen that LED remote control device, it should not appear in this episode, maybe who will go after it.
CPU: I5-6500 bulk
Scraps should only be purchased from Mrs. Ma’s father’s home. This piece of freight 1120, you can see a little scratch, damn even a CPU protection is not good.
Memory: Zhiqi DDR4 2400 8GX2 Bentley Black
It should be this name
Dog East purchase price 179. Pretty beautiful vest. Buy a motherboard to buy one, buy one of them, group 16G dual channel.
Two of the same, not for compatibility, purely for harmony ~ ~
On the back is some details ↑
Look at the front and back, DDR4 slot user-friendly, radian. ↑
Put a traditional pose and end. ↑
The motherboard is a pit
The main board is this product
After the full reduction of about 619 to send the above memory, you can also use coupons, cost-effective, in the micro-star plate is considered less shrink, there are red LED lights. Unhappy that the M.2 interface did not pay attention to see, can only use the Internet card, not to meet the solid M.2, but also the lack of support for the next generation of USB3.1, means that the dream of fighting for 10 years is unlikely. Fortunately, more than one PCI-E3.0 X4 slot, you can take the PCIE to M.2 can also be connected to the PCIE to USB3.1, be regarded as can be retrofit to do something, but it is an additional cost.
Dark-green, military-standard Star Armory (shrink board) series of materials with the most full mortar.
First look at the whole, standard two SATA cable, there are two PCI-E long slot, support X16+X4 CF, of course, also support follow-up installation adapter
To a front view, had to spit this anti-human cooling fins, fortunately I chose the Optimus Prime dedicated to the INTEL platform, if it is anti-human 400, or even the East China Sea X4, it is estimated that there may be compatibility issues At least, the installation is very anti-human. Well this board, no use Intel's network card, sound card is 892, are weak points.
Can see the side interface is still very complete, there are 6 generations of motherboards have been abandoned by the original VGA, friendly to the old monitor. And this 7.1-channel support and support for fiber output is very friendly to some multimedia speakers.
Two hard drives
The solid state selection is OCZ TRION150 240G.
In our words, it is worth choosing.
Compared with the previous generation trion100, performance has made great progress, you can see the maturity of the entire TLC. 240G activity price as long as 320, Dog East is very conscience.
19425cec8e1.jpg" />
Rear view
Disassemble is a plastic box to save, shockproof, it is OK.
To be honest I really like this metal shell, taking into account the heat dissipation. OCZ Toshiba's metal shell makes people feel very tall, compared to the large plastic shell although lighter, but really LOW ah.
This is the front shape, the label used, not printed, I can not remember, ARC100 seems to be printed?
The second is WD's laptop hard drive 1T 5400rpm
Why buy this, mainly focused on the laptop hard drive small size, the key is the noise. (The end result of finding a chassis resonance problem) really violated the original intention, but fortunately I have a special cushion. Want to get a 2.5 to 3.5 bracket, mounted on the 3.5-inch hard disk glue nails, multi-layer buffer, to ensure that the sense can not be felt, and finally failed, bought the adapter can not be perfectly aligned screw hole, GG.
It can be seen that there is a layer of anti-static film on the SSD, and the mechanical hard disk is still delicate.
Nothing to say
This is just like this, plus the negative on the front.
Anyway, it's not very important to do a warehouse, what's the performance, and the copy of the movie will not move anymore.
heat sink
This time I bought two in one breath, one to watch and one to use. The idea of ​​a buddy wants a blue light, anti-human 400 out of stock, and I do not want to anti-human 400 total, for 6500 this CPU, just to a heat pipe can withstand the heat, so pick a good shape Now.
The first choice is the price of the first horse Optimus Prime, every 100-20 cases, and other things to buy together, calculate 80% off, the equivalent starting price of 115 yuan
Because it is the first new horse to blow out cooling, there is no market evaluation. Unpack as above
The support for AMD written on that sheet of paper is actually nonsense. It does not support it at all. This is a 115X dedicated radiator, the advantage is good, really a good outfit.
See the bottom can be seen directly touch the heat pipe, the general heat pipe direct touch is what blow their own patented technology, in fact, looking at the high-end air-cooled is one of the end of the copper or even the hot plate of the situation, the heat pipe directly touched A method to reduce costs, but it does not matter, pressure of 6500, four heat pipes have been considered to kill chickens, this is purely for the face value. Of course, you can see the bottom four screws, as long as a light insertion, installation is complete.
On both sides, we can see that the density of the fins is quite large, and the anti-human 400 is more than worthless. It can be seen that the cooling capacity is still guaranteed. Specific details to be installed when you look at it.
Finally, take a picture of the side and see if you can work.
Here's another example of the Donghai X4 that was bought and stored. The same 4 heat pipes are the tower type.
After opening, you can see that it is multi-platform compatible, and also sent a grease, you can think of sure that there is no pre-painting, of course, first horse claims that he pre-coated the grease thermal coefficient amazing, there are actually more than 16.
The same heat pipe touch
Buying this is purely a good look at this lamp fan.
Sawtooth profiled fins, Shanzhaisan heard that each model of the Korean Simin had a cottage ah.
Look at the two angles, the fin technology is good, you can wear fin, corner buckle is also good, the overall work can also be, is the fin spacing is significantly larger than the previous one. And Xuan Bing 400, do not know if the shape of the fins have no bonus to the heat, or I suspect there may not be a 400 Xuanbing, pressure 6700K what is best not to super, Turbo is the limit.
power supply
The power source has selected the Qianma Gold 500W, which I have always favored, because the full-module version has not yet been released when the order is placed, and it is the flying module version. Comparing the fine line ability.
To be honest, the packaging is quite thick and practical sponges, and the forcing is relatively high. There are non-woven wrappings on the outside.
Sama gold medal, the scheme is advanced half-bridge LLC+DC2DC, 500W and above can easily stack gold medal conversion rate. Materials can also be used, EMI and other levels are complete, the overall performance evaluation is excellent, it is worth buying in the price range, of course, the main capacitor with the luminaries, certainly not comparable to the Japanese. The overall fan noise is acceptable, not counting the loudest sounds of the overall accessories, with a full 300 watt platform with little noise unless this fan is the only one.
Snakeskin wraps are much better than the bare wires, but they still prefer the flattened version of the modular version, which is easy to route and well designed to eliminate the use of custom lines.
Do not know if you can see, +12V should have 480W, DC2DC mode can ensure adequate supply of +12V, full-watt power without talking about. Think about why the Antec Tektronix VP450P was sprayed. It is not a +12V dual channel that can only be rated to output 350W, which is similar to the VP350P.
Fan modeling
Chassis: Qiao Sibo C3 side plate
Side-to-side
Back styling, 4-slot MATX design
Positive bear-like, unilateral side-to-side
This side board, thin to speak the truth, about 1.5mm, aluminum overall is still soft.
After opening the side panel
The aluminum protective film in the chassis was found to be anti-static and rubbing and not torn off.
Reason must tear him off
Bringing a Qiao Sibo no light fan, see the quality is OK, I toss a lot of the light fan finally got this.
After removing the other side plate.
Second, the assembly to do or do Basic cleanup
The problem of tearing the film was mentioned last time, so I completely removed the chassis and successfully tore the film completely.
Including this large backplane was also torn apart. At the same time, we found that there were only 7 copper pillars, so we added the eighth in the correct position.
Initial assembly
First press the power up, it is worthy of praise is the bottom cushion, do not need my own configuration.
Pull the lines out well and not mess
Install the backplane and wrap the CPU power supply cable to it.
Motherboard part, put on the CPU, I think this will all
Pulling out Optimus Prime, really domineering.
Cooling installation is extremely simple, with four screws aligned to the hole in the motherboard and one press. The back of the four nuts turn up, get, pre-coated with grease, eliminating the need for grease steps.
The height of the memory bar is just good, because I inserted the 2.4th bit, so you can insert the sliver.
If it is a No. 1 insert, it may be necessary to insert the memory first and then dissipate the heat.

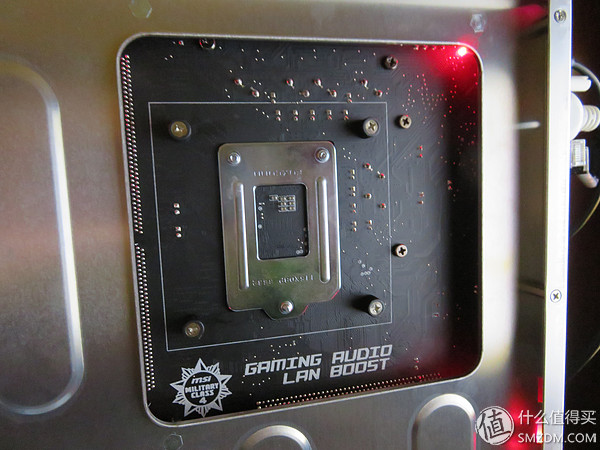

Press the main board, all eight screws are in place, and the 3.5-inch hard disk front board should be used as a cable channel.
The CPU power supply cable must be plugged in first, otherwise this radiator and the top fit space will make you crazy.
Then install the hard disk, solid direct mounting side board
The originally designed hole position was for the 3.5-inch HDD, although there were 2.5 holes left, but there was no special buffer rubber nail. However, after turning the screws, the two ends are just enough to hold the glue nails as a buffer.
It's a bit weird but it can still be seen.
Then install this blue disk
Look for the four holes below
We have screws at the bottom and front cushions (send from the chassis)
Then fixed up (I heard that according to this, they all died in the end, see the outcome after the specific operation method)
Next we take a look at how this light card is installed.
For information about the card, take a look at my other series, the video card that was washed out.
Of course, no oil was added at the time, because the fan's rotation noise was good, and there was no immediate drop in the hand.
Installed, and then go back to the details.
Finally, with the fan, the details will be described later, this light fan was finally unloaded for my light, Mom protein busy.
The details of the installation of personal strength
Looking at the previous part, maybe you have to start a direct spray, what things, and have no clues to use, I can do it on my own.
Then in the next part, maybe you will have some interest in thinking about such a chassis, my thinking and some ideas and experiments.
The first is the previously mentioned mechanical hard disk fixation.
There is hardly anyone in my way that can actually be done. And unfortunately, although 2.5-inch HDD noise is less than 3.5-inch, the C3 sheet is not thick enough to form resonance. All of you, buddies, come across this time and teach you a way.
One-sided sponge cushions are made of 1mm thick. Of course, if you have more, you can use 2mm thick.
Affixed four corners, and then posted a 2mm chassis chassis, double mat perfect. Carefully listened to the sound of resonance can not be heard, to rely on the ear to paste bone conduction in order to feel a little bit.
Get it.
The second we have to look at this is basically no way to go back line, not a module power supply, or a 500W full-watt power supply, how to hide the line (more wattage, if the power is not too pit, almost inevitable Means more lines.)
First of all, we took out our management artifacts, cat gifts, and gave me a copy.
First of all, let us know about the need to organize most of the wire, as shown in the picture, the CPU motherboard power supply, a SATA power supply line has two interfaces just to give me two hard drives, large D port no use, a graphics card power supply 6 + 2 interface Two, in theory, can meet the dual 8Pin graphics card power supply, as shown in the figure, we first bundled the large D port and SATA power supply line in the 2.5-inch hard drive side, carefully look at the two tied with two bundles. At the same time, the first power port of SATA is plugged into the 2.5-inch HDD hard disk.
And then the graphics card power supply line bundled in the above pile of lines, a 6 + 2 exposed, and the other tied, because it is expected that the RX 480 level graphics card, generally non-public version should use a single 8pin, you can directly head bent It is exactly the position of the card's power supply slot. In case of a 6+6P structure, cut the cable tie of the arrow in the upper left corner and release the second 6+2 power supply port. The whole of the lower part is fixed with a cable tie and a strap.
Next, use the cable tie and cable tie to tie the thickest CPU power supply to the motherboard power supply, so that it is vertically upwards and an additional cable tie is added. At the same time, two SATA data cables are inserted from the inside of the thick wire.
Cut off the cable tie and prepare the cable
This content is more, the motherboard power supply line hidden inside the hard disk shelf, from the outside of the mouth out of the motherboard power supply line and fixed (of course, should first plug the power supply port and then manage the line, the line is too long part hidden in the hard disk holder, Just in the interior to form a right angle). Secure the two SATA cables with the cable close to the outside and keep them level.
The overall effect at this time, the inner side must be relatively neat, the outer side of a mess.
Here you can see the second SATA port and the last big D port. The particularly thick two wires are USB3.0, and many chassis IO parts are difficult to handle in this USB 3.0 cable. If you like the wide wire 303, that kind of flat wire is just fine.
Then handle the chassis IO. A total of USB3.0, boot disk light boot lights (plus restart switch, commonly known as the four King Kong, C3 does not restart the button, so there are only three King Kong), there are audio interfaces.
As above, the 3.0 line is folded back. The line is fixed horizontally, and then it is bent back to the motherboard. The four large diamonds are just horizontal. The audio cable is too long to be hidden. Therefore, it is just a good turn around the bollard. Now.
After a lap, the audio cable can be connected to the main board, so that it looks more neat, and very reliable after a variety of fixed.
6+2 will be able to directly plug in the graphics card power supply after the top up.
Then connect the second SATA port to the SATA cable.
Complete the lower line
Hard disk under cover, still quite a series of wire. Buying a disk tray can be followed by several 2.5-inch disks.
The overall side is very good, just don't know why it's up and down.
This is roughly the case, even if there is no cover of the disk tray is also very neat.
Video card installation method
Although I don't think any of my buddies will not install video cards, I still want to put a bit of information here.
For this structure, the slot is outward, first we have to unscrew the single screw.
Do not turn it completely and pull it out.
Turn on the two screws, remove the baffle, the general graphics card, double slot is enough, some flagship card, heat special card may need to be three slots (such as Delan demon series)
Insert the front of the card.
Fix the screws and press the outer cover back.
Plug the video card is no problem, when pulling the card do pay attention to the card slot at the end of a clip, please use your fingers first press the buckle and then pull the card, otherwise it may damage the graphics card or card slot. (Ancient graphics slot may have sliding and side buttons, but now basically eliminated, this is the same as the memory slot with the same principle of deduction, some of the brand's low-end motherboard may also have old-fashioned, drawing card 10 million attention )
Then there is a process of forced death obsessive-compulsive disorder.

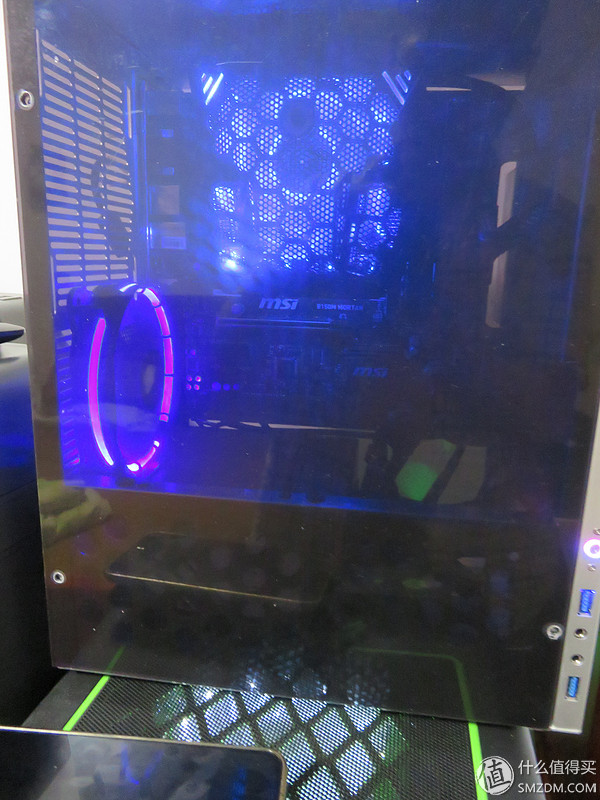

Let's put on the lighting effect when you just installed heat. The red backlight surrounds the blue light, and the power indicator and the hard disk light are staggered. It feels good. So I was thinking about what the exhaust fan was good for.
Originally, my heart was thinking that using a blue silk eclipse blue would be fine, the public standard, Well, cheap and easy to use (Remember Taobao as long as 32, Jingdong expensive it)
The result was a look, Mom eggs, the solar eclipse was dark blue to pan-purple, and sky blue Optimus Prime lights do not match.
This purple, ah.
All kinds of sensitive angles, always can not see a harmony. This is not the color difference of the picture. The actual eye is more serious.
So, in pursuit of perfection, I took out all my inventory. Made a big comparison.
The cool northern lights of the mother Ma are very expensive, and the total amount is also extraordinary. The hydraulic bearings are very powerful and the service life is long. It is a case that the chassis fan is too depleted. Take out the show.
Then add the fan of the East Sea X4 in front of us and compare it. Always feel a bit color, in fact, the Northern Lights that is okay, the East China Sea X4 this LED light I feel very sad, ah, after you can especially buy three overclocking fan to decorate it.
Since these three fans look a bit color difference, I can not bear the northern lights, only to look for another one.
So put on this red try red and blue.
Because the motherboard has LED red atmosphere lights, distributed in the four corners, the power button is also due to hard disk lights, try to match red and blue is not good, in fact, I personally feel very good, not very killing Matt, if in the front 3.5 The position of the inch hard disk holder is then equipped with a decorative, left and right matching should be very nice, and the blue outside red is a reasonable match. The helpless owner of the little helpless person was not very satisfied with the plan.
ID-cooling ice wind, 16 lights, blue light.
I think it's pretty good overall, there are rubber cushions. The price is within 30 pieces.
This is another ID-COOLING fan, the northern lights of the cottage, of course, the material texture certainly does not have the Northern Lights is good, but in the 30 yuan fan, is still very good. PWM4pin speed regulation. 800-2200 rpm
There is a buck line, turn a big D head, giveaways. The rubber pad is very large and it traverses the entire fan, unlike other fans that only have rubber on top.
These two are the treasures that have just turned up in the warehouse. Ah, Ma Yun’s father’s home is my warehouse.
In the end, it was the color of the 16 lamps.
So I chose to install it.
It seems that it is still not balanced, and it finally negates this plan.
In short, it feels normal.
Finally choose the original matt fan. Of course, we still did a shock-absorbing treatment and put on a cushion.
It looks like it can be installed
In general, it's OK. The main problem is the memory on the right side. Due to the gift of the main board, the light bar was not used. As a result, if the fan on the left side falls on the side of the light fan, it finally selects the lightless fan.
Finally, let's look at how the fan line moves.
Attach the cable to the top of the card slot. The fan trace cannot affect the graphics card insertion, so it is best to close from below.
The fan cable is pulled down from the inside and fixed with a cable. Under the tape fixed, in fact, you can also add a line sticker.
Then use this large D port to obliterate the extra lines, or simply cut off the big D as well.
The last machine installed was like this. Acrylic plates have two layers inside and outside, waiting for the owner to tear.
This chapter explains how to install the system. Pure original system. Why pure installation, because you can not guarantee the reliability and compatibility of the ghost file, and the SSD is installed with ghost, the stability encounters a lot of problems, there are various problems such as ACHI not open, etc. The kung fu is much more than pure installation. And the solid system is still relatively fast.
If a worker wants to do good, he must first sharpen his tools.
As a forcing machine builder, of course, you must have your own PE U disk.
Download the old peach, insert the new U disk, remember to choose HDD-FAT32 mode, a key to create a boot disk, wait.
Before this, it must be different. Click on the personality settings, change the title, picture, and the background image to enter, let PE mark your personal brand. At the same time, there is a need to set the sponsor in the bottom right corner. To casually go to a forum website to post an advertisement...
In order to pick up Microsoft's free WIN10, it is generally downloaded WIN8 rose WIN10 (formerly under the next WIN7, but unfortunately the sixth generation of the board does not support native without USB3.0 driver WIN7, so there needs to be an injection-driven process, although each Main board includes PE can note, but the injection of various motherboards is complicated, PE injection method will be injected even with advertising, my basic purpose is WIN10, so directly under WIN8) Download WIN8.1, ISO original, with RAR Extract and decompress to the root directory of the newly prepared PE disk. Change the name of the bootmgr file to win8mgr (the rightmost file).
Specific can be found in the soft media home, of course, we must strictly remember that win8 is to install the key to decide which version to install. The following keys can be entered during installation.
Windows 8.1 with Update Installation Key Core: 334NH-RXG76-64THK-C7CKG-D3VPT
Professional Edition: XHQ8N-C3MCJ-RQXB6-WCHYG-C9WKB
Of course, you also need to prepare the activation software. I usually use the pony OEM10.
And the original ISO decompression file of win10.
And universal network card driver, would like to try to install the system without a network card driver can not go on the network and can not drive any dilemma ~.
The above is required to be prepared in advance.
First, plug in the PEU disk, press the DELETE boot to enter the BIOS, modify the first boot entry for the USB traditional boot, remember not to enter the UEFI, UEFI this thing is very powerful and high priority, directly into the installation system, but your new Hard disk needs to build a partition.
Or press F11 boot menu to select USB. This is a dizzy dish for me. Of course, some UFOs hosted by Huifong Group’s JMF will also display the master's name.
Then we are familiar with the PE Toolbox menu came out, select the first to enter the WIN8PE
The desktop is also another picture, there are NAVI fans ~, although I'm not
Click Diskgenius on the desktop and click on the left side of the SSD to create a new partition. There is a difference here, the partition is divided into two kinds of MBR and GPT, MBR old, new GPT, GPT can support more than 2T large hard drives, later we will say the difference between the two installed. The first is the new GPT
Divide the partition, then save the partition table, format the partition, and get the restart.
After restart, adjust the first startup item to UEFI-USB, or select UEFI in the boot list (MSI by F11): SanDisk
After a short wait, you will directly enter the WIN8 installer.
At this time, enter the product key in front of you, and the professional version will lose the professional version.
Select disk installation, note, this time must be GPT partition table to install, if it is MBR will appear the following situation,
By the same token, using another method will not be able to install the system in the GPT partition format.
Then, after the installation is complete, which will be restarted after all files are unrolled. At this time, either choose to remove the U disk, or choose to change the startup item to solid state disk, or select the SSD boot menu to start, otherwise it will continue to jump To the system installation guide.
Installed
Into the system, select the network card driver, install.
Incidentally installed OFFICE
Pony OEM10 a key activation
Automatic restart
Activated successfully
Copy the unzipped folder of WIN10 to the SSD (increase the installation speed)
Double click stuep, do not update, install directly
The installation is complete
In the settings, put my computer on the desktop, along with seeing permanently activated WIN10 in the settings properties. Finally, you can go to the official website under some of the public software, use the driver wizard 360 drive masters and other make up other drivers.
Run an entertainment guru under the meaning.
Solid performance is so-so.
An interesting software ramdisk can be used to allocate memory for hard disk use.
This speed is really astounding, but if you look at it, cache caching doesn't really matter.
Here's how to install the system if children's shoes with MBR partition table are selected. We can first review what I did when I unzip the WIN8 system to the root directory of the U disk (yes, WIN10 can not copy to the root directory, nor did I change bootmbr to WIN8mbr)
After completing the partition formatting, restart nothing and continue to enter my PE toolbox
Select item 11 at this time to install the original system
Select the sixth item and install the WIN8 system directly
Enter the same screen, the same behind the installation process, remember to reboot when you still have to set the boot from the SSD, otherwise it will enter the PE toolbox.
Then the whole article was interrupted for several days and finally finished. You can continue to fill in other pits.
To tell you the truth, this camera set looks the same in the end. It lacks the embellishment of the video card belief lamp and the memory bar lights, and the ring fan is not matched with it. It's a pity.
Finally put some final pictures.
At this time the video card has been removed by me, because the video card may be subject to violent release loose. Need to be sent separately
This lighting effect seems to be even careless.
There is also a hint of taste in the darkness.
So this is the end of this, friends who like to communicate can find the practice mode in the personal version on the webpage. The following series should not be so tedious.
